ProductsMedium-Duty Australian Standard Wire Mesh Back Shelving
AU MD RackBest SellerMedium Duty

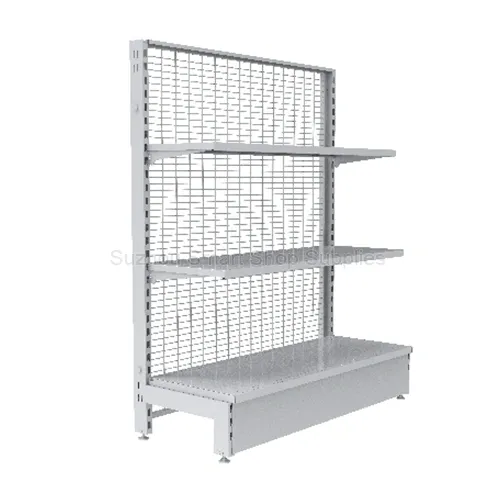

Medium-Duty Australian Standard Wire Mesh Back Shelving
Create an open and spacious store layout with our Medium-Duty Australian Standard Wire Mesh Shelving. High-quality framed gridwall shopfitting solutions for retail display fixtures and supermarkets.
Product Overview
Enhance your store's visibility and airflow with our Medium-Duty Australian Standard Wire Mesh Shelving. Engineered for durability and a spacious aesthetic in modern shopfitting, this single-sided unit features a premium wire mesh back panel reinforced with a square tube frame. It provides a highly versatile backing that allows light to pass through while easily accommodating a variety of peg hooks and grid accessories. Supported by robust 70x30mm upright posts and stable 450mm base feet, it is the perfect modular solution for convenience stores, hardware shops, and supermarkets looking for high-quality retail shop shelving and visually open display fixtures.
Technical Specifications
Feature | Specification |
Model | SMT-SR-AUMD-7 |
Description | Single Side Medium Duty Wire Mesh Shelving |
Overall Size | W: 900 / 1200mm D: 450mm H: 1500 / 1800 / 2100mm |
Frame Size | Upright Post: 70 * 30mm |
Shelf Specification | Base Foot Depth: 450mm (Upper shelves customizable) |
System Pitch | 50mm Pitch Standard |
Back Panel | Wire Mesh Back Panel (Square Tube Frame / Gridwall) |
Loading Performance | Medium duty loading |
Color Options | Black / White / Light Grey (Custom colors available) |
Surface Finish | Premium Powder Coating |
If you are opening a new store or refurbishing an old supermarket make sure to take advantage of our complimentary Grocery & Supermarket design consultation and services. We will give you a retail solutions within 24 hours.
Why Choose Our Wire Mesh Shop Shelving?
- Spacious Retail Display: The open wire mesh panel allows light and air to flow through your aisles, preventing your store from feeling cramped and making it a top choice for modern, brightly-lit retail store displays.
- Heavy-Duty Gridwall Utility: The square-tube reinforced mesh back acts as a highly durable gridwall, allowing you to hang blister packs and accessories directly on the backrest between standard supermarket shelves.
- Universal 50mm Pitch System: Built with the widely accepted 50mm pitch system on the uprights, ensuring maximum compatibility with standard Australian shopfitting equipment and medium-duty shelf brackets.
Packaging Information
- Packing: Knock-down (CKD) safe export cartons to save freight costs.
- Protection: Uprights, brackets, and wire mesh panels are wrapped in bubble foam with reinforced edge protectors to prevent transit damage.
