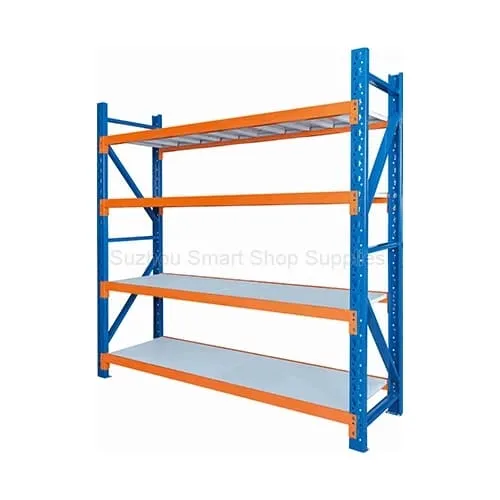

Industrial 4-Tier Boltless Medium-Duty Warehouse Racking System
Commercial-grade 4-tier medium-duty boltless warehouse racking system designed for heavy manual picking profiles. Available in flexible dimensions (Lengths: 1500/2000mm, Widths: 500/600mm, Height: 2000mm). Features a heavy-duty pre-welded upright frame, secure four-prong interlocking orange step beams, and drop-in steel panels for maximum fleet stability.
I. Product Overview
Supercharge your facility's weight capacity and optimize storage security with the SMT-WR02 Industrial Boltless Medium-Duty Warehouse Racking System. Specifically upgraded with wider steel profiles and enhanced gauge wall thicknesses, this premium 4-tier storage fixture handles heavier industrial stock, dense hardware packaging, and bulky distribution bins compared to standard light-duty shelving. Relying on a classic industrial blue and orange color-coded aesthetic, it features heavy-duty pre-welded upright trusses paired with reinforced multi-claw step beams that lock together entirely tool-free. Dropped with rigid cold-rolled steel panels, it delivers an uncompromising, perfectly squared structural foundation tailored for distribution hubs, automotive part depots, and retail hypermarket inventory rooms.
II. Component Specifications
Engineered to strict material handling specifications from commercial cold-rolled structural steel to prevent deflection under heavy loads:
- Reinforced Pre-Welded Trusses: The vertical blue end-frames are supplied fully built with deep-channel upright profiles and heavy factory welds securing the diagonal anti-sway bracing. This integrated design optimizes field load distribution and slashes store setup timelines.
- Heavy Four-Prong Interlocking Beams: The horizontal safety-orange step beams are equipped with massive four-claw connector brackets on each end. These interlocking claws wedge directly into the heavy teardrop slots of the post, maximizing torque resistance and lateral stability.
- Drop-In Industrial Steel Decks: Each of the 4 structural tiers utilizes heavy-gauge steel shelving panels designed to rest flush within the stepped recess of the beams. This premium full-metal surface prevents the localized bowing common to wooden composite sheets and stands up to grease or oil spills.
- Flexible Vertical Space Allocation: The upright hole matrix provides precision continuous adjustments, allowing warehouse operators to raise or lower individual tiers seamlessly to accommodate bulk merchandise shifting.
- Electrostatic Armor Powder Coating: The entire steel skeleton receives an automated industrial chemical pre-wash followed by a thermo-baked electrostatic powder coat (Industrial Blue for uprights, Safety Orange for load beams), offering supreme defense against scratches, corrosion, and impacts.
III. Additional Information
Feature | Specification Details |
Product Code | SMT-WR02 |
Description | Medium-Duty Warehouse Racking System |
Frame Architecture | 100% Boltless Interlocking Four-Prong Claws / Pre-Welded Trusses |
Available Sizes | 1500*500*2000mm 1500*600*2000mm 2000*500*2000mm 2000*600*2000mm |
Tiers / Layers | 4 Layers |
Color Configuration | Industrial Blue Posts (RAL 5015 style) / Safety Orange Beams (RAL 2004 style) |
Decking Type | Heavy Drop-In Stepped Cold-Rolled Steel Panels |
Surface Finish | High-Impact Electrostatic Powder Coating |
IV. Professional Integration & Logistics
A globally cross-compatible material handling asset built to compress facility rollout costs and optimize freight container value:
- Fire Safety & Building Code Compliance: The robust all-steel panel structure complies seamlessly with fire protection rules and industrial warehouse insurance mandates, eliminating the risks associated with moisture absorption and dry-rot typical of raw wood shelves.
- High-Density Flat-Pack Logistic Yield: The interlocking components allow beams, structural panels, and pre-welded upright frames to nest flat into space-saving corrugated packing configurations. This maximizes cubic transport optimization inside 40HQ ocean cargo containers, dramatically reducing landed logistics costs for high-volume international sourcing.
Available for bulk commercial contract ordering. Upright gauge profiles, alternative truss heights, beam lengths, tier counts, and specific load-rating parameters can be custom-manufactured by our factory engineering team to fit your facility plan.
