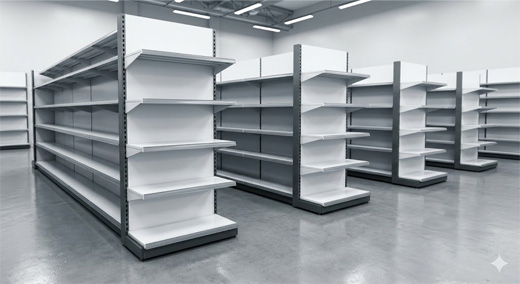

Standard Supermarket Shelves: The Ultimate Technical Guide to Global Specs & Layouts (2026)
Buying supermarket shelves? Compare our Ordinary (25mm pitch), European (50mm), Australian (41mm), and NZ styles. Learn upright dimensions and cost-saving tips.
You are planning a store, not writing a thesis. But here is the reality: If you choose the wrong shelf specification now, you will pay for it later. Imagine buying accessories next year, only to find they don't fit your holes. Or realizing your uprights are too thin for your heavy merchandise. You need the right standard for your region and your load requirements. This guide skips the fluff. We break down the exact technical specifications of our four core shelf systems—Ordinary, European, Australian, and New Zealand styles—so you can buy with 100% confidence.
💡 TL;DR: Quick Spec Check (For Busy Buyers)
- Ordinary Style: 25mm pitch, 30x60mm uprights. Best for general use.
- European Style: 50mm pitch (Tego compatible). Choice of 30x60mm or 30x80mm uprights.
- Australian Style: 41mm pitch. Unique "Four-Post" design for heavy duty. * New Zealand Style: 50mm pitch, 30x70mm uprights.
1. Choose Your System: Detailed Specifications
Different markets use different standards. Matching your local standard ensures you can easily buy accessories locally in the future. Here is the technical breakdown of the 4 systems we manufacture:
A. The "Ordinary" Standard Style (General Use) This is our most versatile, cost-effective option for general retail stores.
- Upright Size: 30x60mm
- Hole Pitch: 25mm (Double Row Holes)
- Why choose this? The 25mm pitch allows for very fine adjustments of shelf height, maximizing vertical display space for small items like snacks or medicine.
B. The European Style (Tegometall Compatible) Designed to match the industry standard in Europe and many parts of Asia/Africa.
- Hole Pitch: 50mm (H-Slot)
- Upright Options: You can choose based on your load requirement:
- 30x60mm: For standard supermarket loads.
- 30x80mm: For heavy-duty requirements (Liquor, Bulk items).
- Why choose this? High compatibility. If you already have Tego-style shelves, our parts will fit.
C. The Australian Style (Outrigger / Four-Post) This is a specific "Heavy Duty" design popular in the Australian market. It uses a unique structure with front legs.
- Structure: Middle Upright + Front Upright.
- Middle Upright: 34x70mm
- Front Upright: 40x40mm
- Hole Pitch: 41mm (H-Slot)
- Why choose this? Extreme stability. The 4-post design effectively turns a shelf into a rack, ideal for hypermarkets.
D. The New Zealand Style Specifically engineered for the NZ market preferences.
- Upright Size: 30x70mm
- Hole Pitch: 50mm (H-Slot)
- Why choose this? It offers a balance between the European style and the heavier Australian style, perfectly suited for NZ retail environments.
2. Standard Dimensions Map
Once you pick your system above, choose your size. These are the modular sizes we produce.
Specification | Metric (mm) | Imperial (Approx) | Notes |
Length (Width) | 900 / 1000 / 1200 | 3ft / 4ft | 900mm fits tight corners; 1200mm is best for bulk. |
Depth (Base) | 450 / 500 / 550 | 18" / 20" / 22" | Base shelf is usually the deepest. |
Height | 1500 / 1800 / 2100 / 2400 | 5ft - 8ft | 1.5m for Gondola (Center); 2.1m+ for Wall units. |
3. How to Save 15%: Starter vs. Add-on Units
Don't waste money buying unnecessary steel. Understanding this concept is crucial for your budget.
- Starter Unit: Includes 2 Uprights. It stands independently.
- Add-on Unit: Includes 1 Upright. It attaches to the Starter Unit.
The Golden Rule: For every continuous row of shelves, you need 1 Starter Unit and (N-1) Add-on Units.
- Example: If you need a 5-meter row (using five 1000mm shelves):
- Don't buy: 5 Starter Units (You will pay for 10 uprights).
- Do buy: 1 Starter + 4 Add-ons (You only pay for 6 uprights).
- Result: You save the cost of 4 uprights.
4. Anatomy of Quality: What Materials Do We Use?
Specs are useless if the steel is weak.
- Steel Grade: We use high-grade Q235 Cold Rolled Steel.
- Finish: Fully automated Powder Coating.
- Process: Acid washing -> Phosphating -> Powder Spraying -> High Temp Curing.
- Benefit: Rust-resistant and smooth finish.
- Back Panels:
- Plain: Cheapest, clean look.

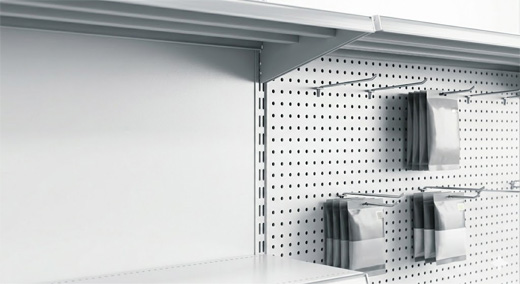

- Perforated (Punch): Allows use of hooks. Best for hanging items.
Conclusion
Whether you need the fine adjustability of the 25mm Ordinary style, the heavy-duty structure of the Australian 4-post system, or the standard European 50mm pitch, we have the mold ready. Don't settle for "generic" shelves that might wobble or rust. Choose the specific specs that fit your region.
Need a Precise Quote? Stop guessing the weight and size. Contact Us Now. Tell us: "I need the Australian Style" or "I need the Euro Style 30x80 uprights". We will send you a Free 3D Layout and a factory-direct quote within 24 hours.
Frequently Asked Questions (FAQs)
Q1: What is the difference between Ordinary and European style supermarket shelves? The primary difference is the hole pitch. Ordinary style shelves feature a 25mm pitch with double row holes , allowing for fine height adjustments. European style shelves use a 50mm pitch with an H-Slot design and are highly compatible with Tego-style systems.
Q2: Why should Australian retailers choose the Australian Style shelving? The Australian style uses a specific "Heavy Duty" design with a unique structure featuring front legs (Middle Upright + Front Upright). This 4-post design effectively turns a shelf into a highly stable rack, which is ideal for hypermarkets.
Q3: What is the hole pitch on the Australian style shelves? The Australian style shelving systems feature a 41mm hole pitch with an H-Slot design.
Q4: What is the difference between a Starter Unit and an Add-on Unit? A Starter Unit includes 2 uprights and stands independently. An Add-on Unit includes only 1 upright and must be attached to the Starter Unit.
Q5: How can I save money when ordering a long row of supermarket shelves? To save unnecessary steel costs, follow the golden rule: for every continuous row, buy 1 Starter Unit and (N-1) Add-on Units. For example, a 5-meter row using five 1000mm shelves only requires 1 Starter and 4 Add-ons, saving you the cost of 4 uprights.
Q6: What materials are used to manufacture these supermarket shelves? Our shelves are manufactured using high-grade Q235 Cold Rolled Steel.
Q7: What kind of finish is applied to the shelves to prevent rusting? We use a fully automated powder coating finish. The process includes acid washing, phosphating, powder spraying, and high-temperature curing, resulting in a rust-resistant and smooth finish.
Q8: What are my options for back panels? You can choose between plain back panels for a clean look , or perforated (punch) back panels, which are best for using hooks to display hanging items.
Q9: How tall should my supermarket gondola shelves be? Based on our standard dimensions, 1500mm (1.5m) is generally recommended for Gondola (Center) units, while 2100mm+ is better for Wall units.
Q10: Do you provide layout designs before I make a purchase? Yes, once you tell us your required style and specs, we will send you a Free 3D Layout and a factory-direct quote within 24 hours.
